IRF1404ZPBF N Channel Transistor 180A 200W HEXFET FET MOSFET

Name: IRF1404ZPBF N Channel Transistor 180A 200W HEXFET FET MOSFET
Brand: Infineon Technologies/International Rectifier IOR
Price: 1 USD

Wholesale IRF1404ZPBF N Channel Transistor 180A 200W HEXFET FET MOSFET from china suppliers

Brand Name : Infineon Technologies/International Rectifier IOR

Model Number : IRF1404ZPBF

Certification : ROHS

Place of Origin : CHINA

MOQ : 10pieces

Price : Negotiated

Payment Terms : T/T, Western Union

Supply Ability : 500000pcs

Delivery Time : 2-15days

Packaging Details : Standard package

Family : Discrete Semiconductor Products

Category : Electronic Components-MOSFET (Metal Oxide)

Series : HEXFET MOSFET (Metal Oxide)

Base part number : IRF1404

Details : N-Channel 180A (Tc) 200W (Tc) Through Hole TO-220AB

Type : Transistors - FETs, MOSFETs - Single

Description : MOSFET N-CH 40V 180A TO220AB

Package : TO220

Mounting Type : Through hole

Stock : In Stock

Contact Now

IRF1404ZPBF Transistors N-Channel 180A 200W Through Hole TO-220AB HEXFET FETs MOSFETs

N-Channel 180A (Tc) 200W (Tc) Through Hole TO-220AB Specification:

Category	Discrete Semiconductor Products
	Transistors - FETs, MOSFETs - Single
Mfr	Infineon Technologies
Series	HEXFET®
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.7mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	150 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4340 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	200W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
Base Product Number	IRF1404

Description

This HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.

Additional features of this product are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in a wide variety of applications.

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095

Part number	IRF1404ZPBF
Base part number	IRF1404

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95

IRF1404ZPBF N Channel Transistor 180A 200W HEXFET FET MOSFET

Product Tags:

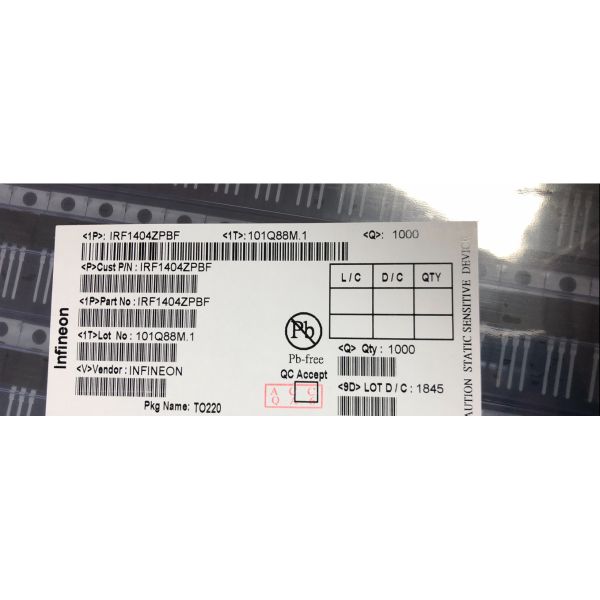

IRF1404ZPBF N Channel Transistor 180A 200W HEXFET FET MOSFET Images
